Erlang Raytracer

I wrote this simple raytracer for the purpose of experimenting with concurrent and distributed programming in Erlang.

The source code for this project is available in a Git repository which you can access with the following command:

or through a web interface. You can also download the whole project in a convenient tarball.

To run the raytracer you need a properly installed Erlang/OTP system. The code has been tested with Erlang/OTP version R12B. You can use the official binaries or you can install Erlang from your distro’s repositories.

Instructions for running the raytracer are included in the comments at the top of the raytracer.erl file.

This Erlang/raytracing experiment is almost finished. I want to implement the items on the feature list and make sure that distributed mode actually results in performance gains on a 100mbit network. Here is a log of what is going on in the project.

This is a magnified image of what I saw when I got a naive ray/sphere intersection code to work. It returned the first object a ray hit, which is only correct for a scene with one object. It was an exciting time!

At first, I couldn’t understand what was wrong when I saw this. It turned out that outputting to a non-square image revealed a bug where I mixed up the X and Y pixel coordinates in two loops.

Here you can see actual object colours being used and ray/sphere intersection code with proper depth detection.

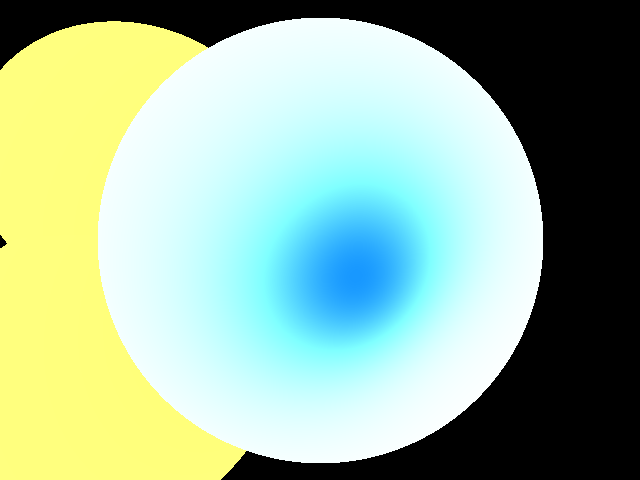

This is the output of a simple depth-based illumination function. It just shades objects based on their distance from the camera.

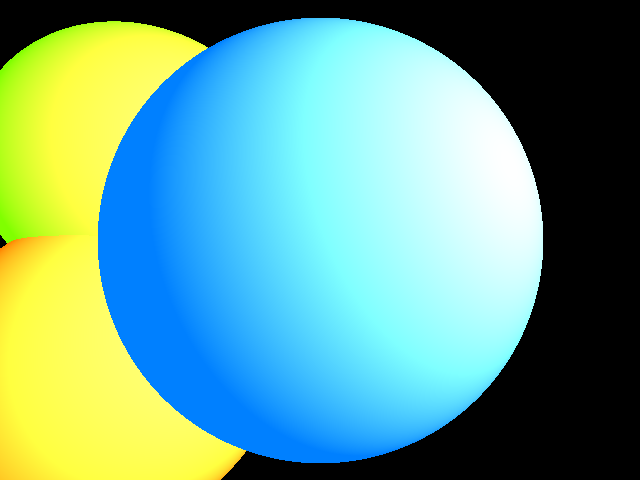

It took me a while to figure out diffuse lighting and how to add terms in an illumination function. Additionally, I was mislead into using colour components in the rage of 0-255 instead of using percentages (0.0-1.0).

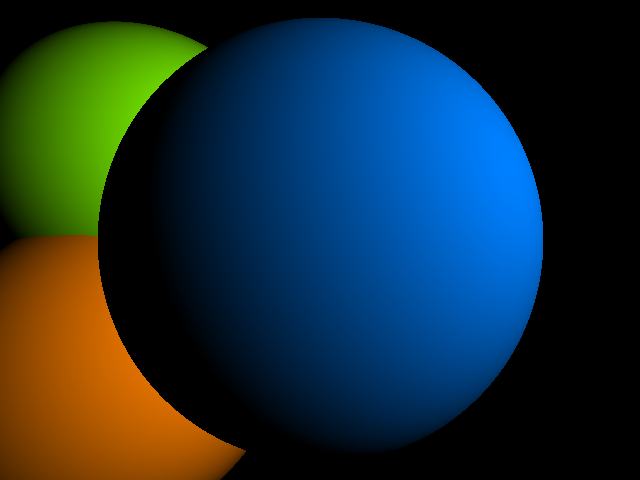

Eventually, after reading different papers on local illumination and asking experienced people for advice I got diffuse lighting to work. Note how the colour of the blue sphere received a green tint because the light source that I used had a bit of yellow in it.

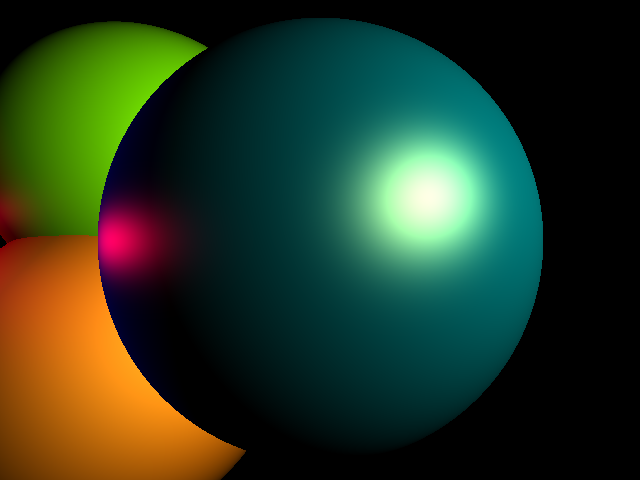

The addition of a specular component was a big improvement to the look, in my opinion.

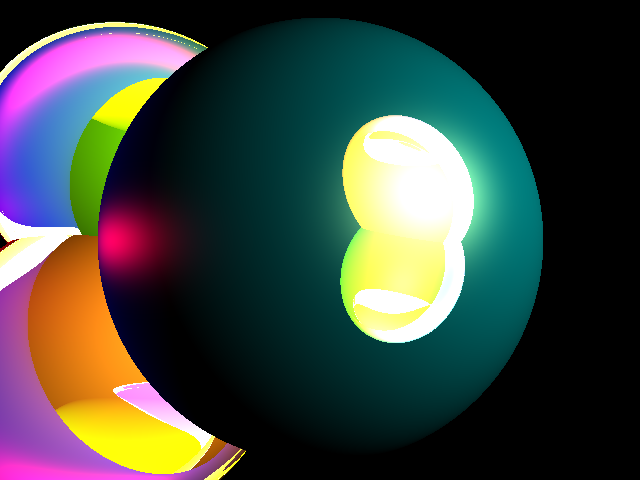

While writing the reflection code I ran into a problem of limited numerical precision. As a result, a ray reflected off of a surface would wrongly intersect with that same surface. This funky image shows what it looks like. Thankfully, I didn’t spend a lot of time on tracking this issue down because Andrew Brikett has already done that while writing his raytracer in Haskell.

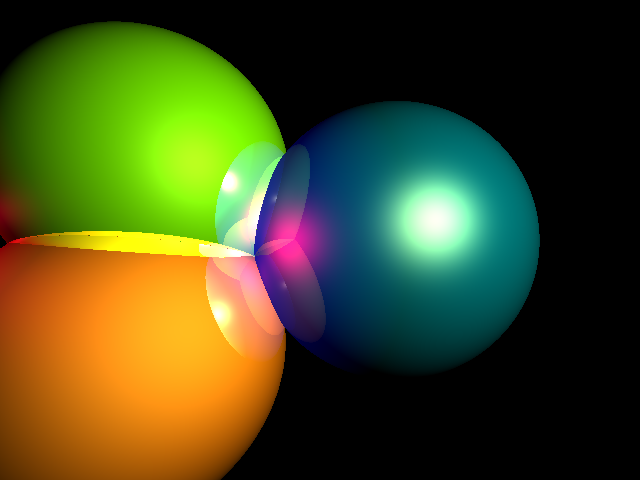

This is the result of a working reflection code at different recursion depths. Upon close inspection, you will see that the reflections in one image are more complex than in the other because of the increased number of times the reflection rays were allowed to bounce.

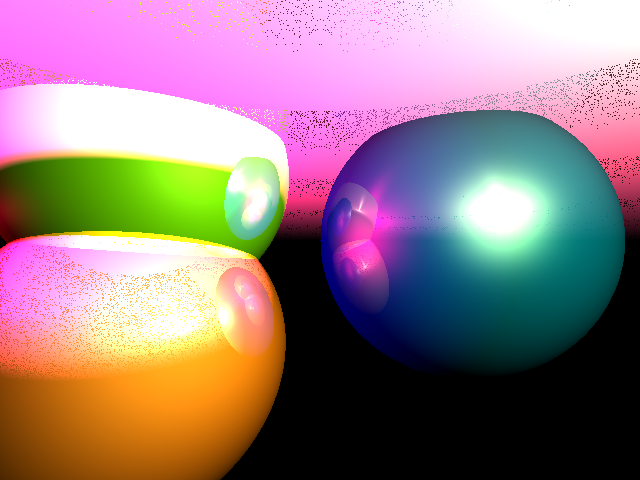

Some more results of limited numerical precision happening on the surface of an infinite plane object.

In this image you can see a properly lit infinite plane, reflections with maximum depth of 100, and shadows cast from two light sources.

The source code of this project is licensed under GPL version 2 or (at your option) any later version.
